Features:

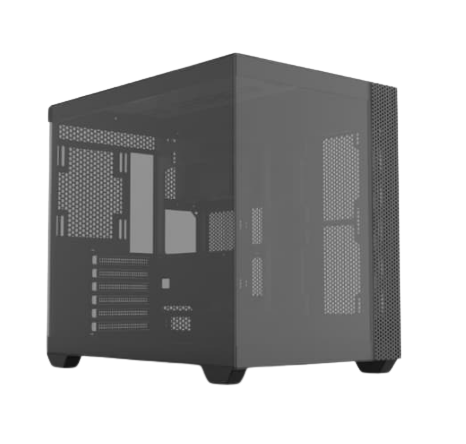

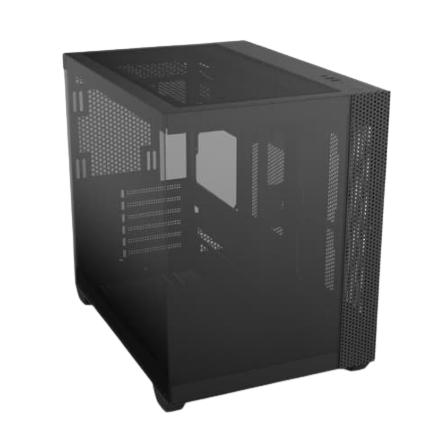

CD600 is a versatile sea-view PC chassis supporting a back-connected motherboard for optimal space and cable management. It accommodates up to nine 120mm fans, two 360mm radiators, and features a full-transparent design for showcasing your build. Supports large components and offers tool-free maintenance, with ample connectivity including USB Type-C.
Back-connected motherboard support
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 57mm behind
MB tray.
Versatile Cooling Options
Support for up to nine 120mm fans and 2x 360mm radiators slot, able to
effectively cool down even the most powerful CPUs.
Full-Transparent Design
The full-transparent design creates even more space for showcasing your personality, ensuring that no details are lost from any angle of your builds.
Versatile Storage Support
Supports up to 2x3.5” HDD storage and 2x 2.5” SSD, the HDD cage is completely removable for easy installation.
Dual side Tool-free Panels
Both the tempered glass side panel and the steel side panel feature a tool-free design, providing a painless experience for installation and maintenance.
Room For Upgrades
Support for up to a 400mm graphics card, a 175mm CPU cooler, and 200mm length PSU. Support 1x USB3.0 Type-C connector and 2x USB3.0 Type-A connector for latest devices.
Specification:
| Model |
CD600 |
| P/N |
CD600-KHNN-S00 |
| Color |
Black |
| Materials |
- Exterior: SPCC
- Left Panel: Tempered Glass
- Right Panel: Steel
|
|
Dimensions (L x W x H)
|
430mm(L) x 295mm(W) x 390mm(H) |
| Volume (Liters Incl. Protrusions) |
45L |
| Motherboard Support |
ITX/M-ATX/ATX(without bottom radiator installed) |
| Expansion Slots |
6 |
| Drive Bays |
- 5.25“ ODD:N/A
- 3.5” HDD: 2
- 2.5” SSD: 2
|
| I/O Panel |
- USB Ports: USB 3.2 Gen1*2, USB 3.2 Gen2*1
- Audio In / Out: Single Audio jack
|
| Included Accessories |
N/A |
| Fan Support |
- Motherboard tray: 2 x 120mm
- Top: 3 x 120mm/2 x 140mm
- Bottom: 3 x 120mm/2 x 140mm
- Rear: 1 x 120mm/1 x 140mm
|
| Radiator Support |
- Motherboard tray: 240mm
- Top: 240mm/280mm/360mm
- bottom: 240mm/280mm/360mm
|
| CPU Cooler |
175mm |
| Power Supply |
Max.200mm |
| Graphics Card |
Max.400mm |
| Cable Routing |
Behind MB Tray: 57mm |
| Dust Filters |
Top/Bottom |
| Power Supply Support |
SFX/SFX-L/ATX |
| Warranty |
2 years |
