Features:
• Two L-shaped light strips on top and bottom with befitting lighting effects.
• Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting.
• 2 heights adjustable motherboard rear I/O and mounting points.
• Supports up to 420mm radiator on top, and 360mm radiator on side and bottom.
• Supports 140mm fans x3 on top, side, and bottom.
• Cable management friendly with more space at the second chamber.
• Optional accesories for vertical GPU or upright GPU mounting.

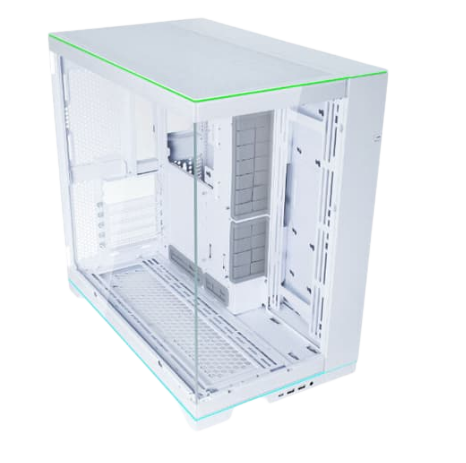

Introducing the all-new O11D EVO RGB, featuring dual ARGB light strips running through the top and bottom of the chassis，creating a stunning look. And the expanded internal space provides greater component compatibility, bringing an exceptional PC-building experience.
● White Coated Mesh Panel
● Clear Tempered Glass
● Aluminum with white powder coating
ARGB STRIPS ON THE TOP AND BOTTOM
The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip at both the top and bottom of the chassis that can switch between 14 different lighting effects, adjust brightness and color, and sync with the motherboard.
COMPLETELY UNOBSTRUCTED VIEW

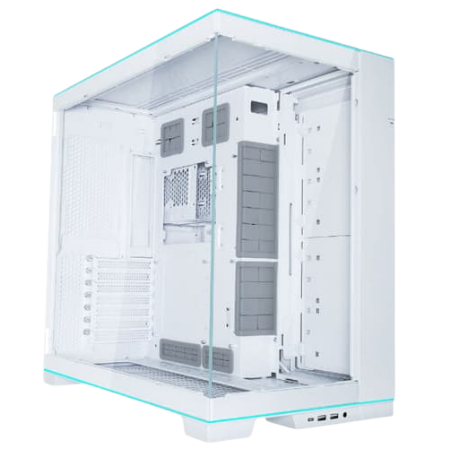

The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing hardware without affecting the case’s structure.
LARGER SIZE, HIGHER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator at the top (requires a separate bracket, 360mm radiator at the side/bottom, and 3x140mm fans at all three sides.
Struggle-Free Fan Brackets
Equipped with a quick-release design, the fan brackets of all three sides can be easily removed or installed.
The side bracket can be flipped vertically or horizontally, offering 4 different installation styles.
ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing the users to adjust the installation position of the motherboard to accommodate different builds.
CUSTOMIZED CABLE MANAGEMENT
O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm of extended space from the rear of the PSU chamber for more cable management room.
Specifications:
| PRODUCT NAME |
O11 Dynamic EVO RGB |
| MODEL |
O11DERGBW |
| CASE TYPE |
Tower Chassis |
| COLOR |
White |
| DIMENSIONS |
(D) 478mm × (W) 290mm × (H) 471mm |
| MATERIAL |
4.0mm tempered glass Aluminum 、Steel |
| MOTHERBOARD SUPPORT |
E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX |
| EXPANSION SLOT |
7 |
| STORAGE |
Side Fan Bracket:2 × 3.5″ HDD or 4 × 2.5″ SSD
Behind MB Tray: 2 × 2.5″ SSD
Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD |
| RADIATOR SUPPORT |
Top: 240mm × 1 or 360mm × 1 or 420mm × 1
Side: 240mm × 1 or 280mm × 1 or 360mm × 1
Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1 |
| FAN SUPPORT |
Top: 120mm × 3 or 140mm × 3 Top: 120mm × 3 or 140mm × 3Side: 120mm × 3 or 140mm × 3Bottom: 120mm × 3 or 140mm × 3Rear: 120mm × 1 |
| GPU LENGTH CLEARANCE |
455.7mm（Max） |
| CPU COOLER HEIGHT CLEARANCE |
167mm（MAX） |
| I/O PORTS |
USB 3.0 × 2
USB 3.1 TYPE-C × 1
Audio × 1
Color Button × 1
Mode Button ×
Brightness Button × 1
Reset Button × 1
Power Button × 1 |
| DUST FILTER |
1 × Bottom |
| WARRANTY |
1 Year |
