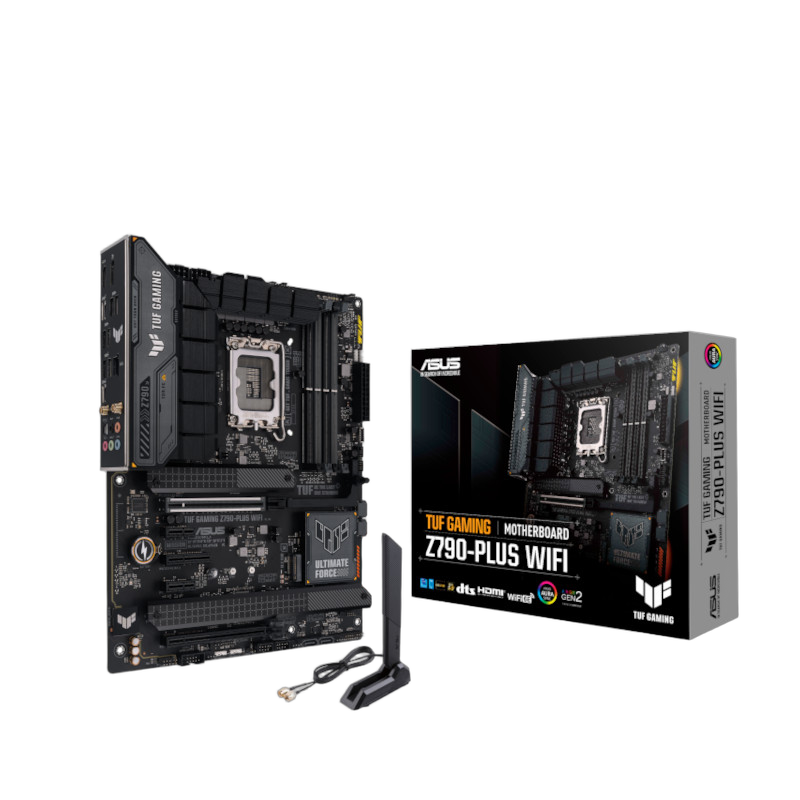

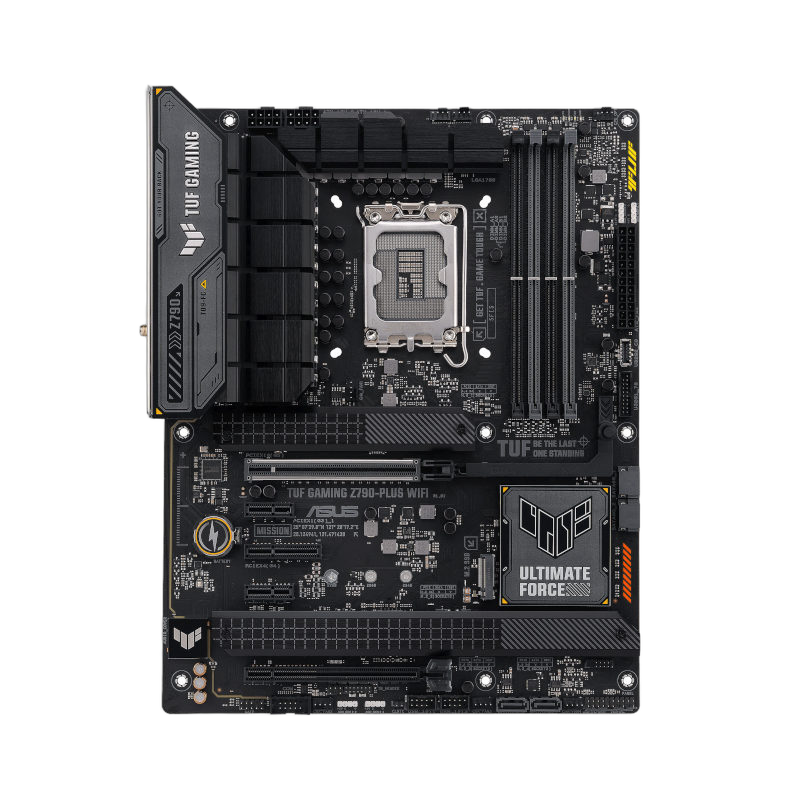

TUF GAMING Z790-PLUS WIFI
TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING Z790-PLUS WIFI is the perfect foundation for your next Intel battle rig.
DrMOS Power Stages
16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
8+8 PIN ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

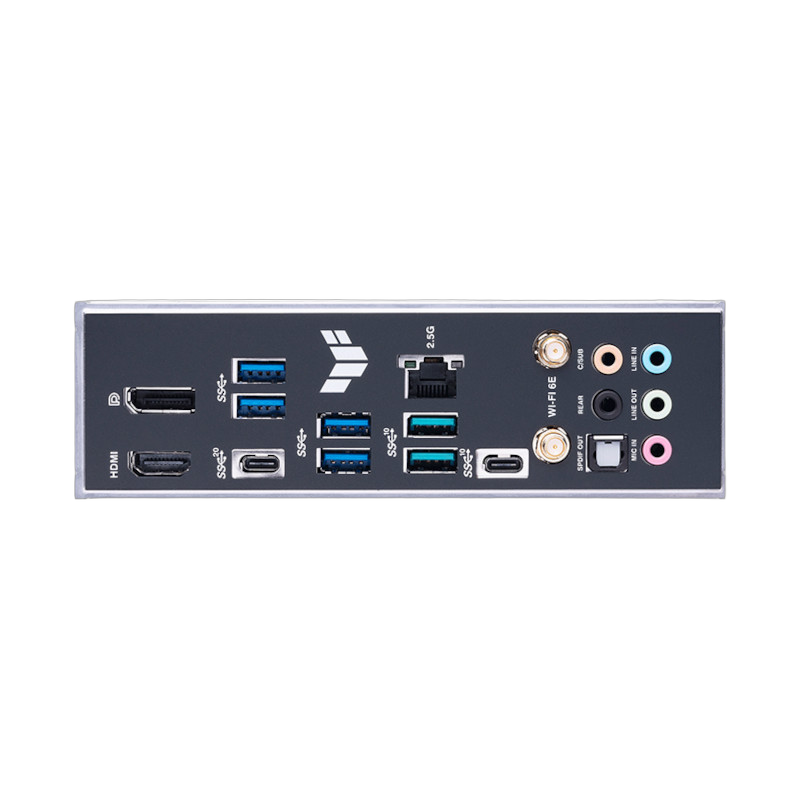

Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
Immersive Gaming
TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
| CPU Socket |
Intel LGA1700
|
| Supported CPUs |
Intel Core 12th, 13th, and 14th Gen; Pentium Gold; Celeron
|
| Chipset |
Intel Z790
|
| Memory |
4 × DDR5 DIMM, Dual Channel, up to 128 GB
|
| Memory Speed |
Up to DDR5-7200 MT/s (OC), Intel XMP, OptiMem II
|
| Graphics Outputs |
1 × DisplayPort 1.4 (4K 60Hz); 1 × HDMI 2.1 (4K 60Hz)
|
| PCIe Slots |
1 × PCIe 5.0 x16; 1 × PCIe 4.0 x16 (x4); 1 × PCIe 4.0 x4; 2 × PCIe 3.0 x1
|
| M.2 Slots |
4 × M.2: 3 × PCIe 4.0 x4; 1 × PCIe 4.0 x4/SATA
|
| SATA Ports |
4 × SATA 6 Gb/s
|
| RAID |
PCIe and SATA RAID 0/1/5/10
|
| Ethernet |
Intel 2.5Gb LAN
|
| Wireless |
Wi-Fi 6E, Bluetooth 5.3
|
| Audio |
Realtek S1220A 7.1-channel; optical S/PDIF
|
| Rear USB |
1 × USB 3.2 Gen 2x2 Type-C; 2 × USB 3.2 Gen 2 Type-A; 1 × USB 3.2 Gen 2 Type-C; 4 × USB 3.2 Gen 1 Type-A
|
| Front USB |
1 × USB 3.2 Gen 2 Type-C; 1 × USB 3.2 Gen 1 header (2 ports); 2 × USB 2.0 headers (4 ports)
|
| Fan Headers |
1 × CPU Fan; 1 × CPU OPT; 1 × AIO Pump; 4 × Chassis Fan
|
| Power Connectors |
1 × 24-pin ATX; 2 × 8-pin CPU Power
|
| Internal Connectors |
4 × M.2; 4 × SATA; RGB/ARGB; Clear CMOS; COM; Front Audio; System Panel; Thunderbolt Header
|
| Special Features |
TUF Protection; Q-Design; VRM/M.2 Heatsinks; Aura Sync; BIOS FlashBack
|
| BIOS |
192 Mb UEFI AMI BIOS
|
| Manageability |
WOL by PME, PXE
|
| Software |
Armoury Crate, Fan Xpert 4, AI Suite 3, DTS Audio Processing, MyASUS
|
| Accessories |
2 × SATA Cables; Wi-Fi Antenna; TUF Sticker; M.2 Accessories; User Guide
|
| Operating System |
Windows 10/11 64-bit
|
| Form Factor |
ATX, 30.5 × 24.4 cm
|
| Warranty |
3 Years
|
